Body made of unbreakable self-extinguishing V0 polycarbonate, grey RAL9003 colour.
Available protection grid made of galvanized steel
BODY
DIFFUSER
Diffuser made of opal self-extinguishing V0 polycarbonate, UV stabilized, with internal prisms.
Smooth outer surface for easy cleaning.
GASKETS
IP66 water tightness of the product is guaranteed by polyurethane gaskets injected into the body.
SCREEN CLOSING SYSTEM
Polyamide closing clips with anti-vandal screw hole. Available in alternative closure with hooks in stainless steel. Hinged opening.
FIXING SYSTEM
Fixing system by stainless steel brackets with quick coupling suitable for ceiling mounting or suspension
LED MODULES

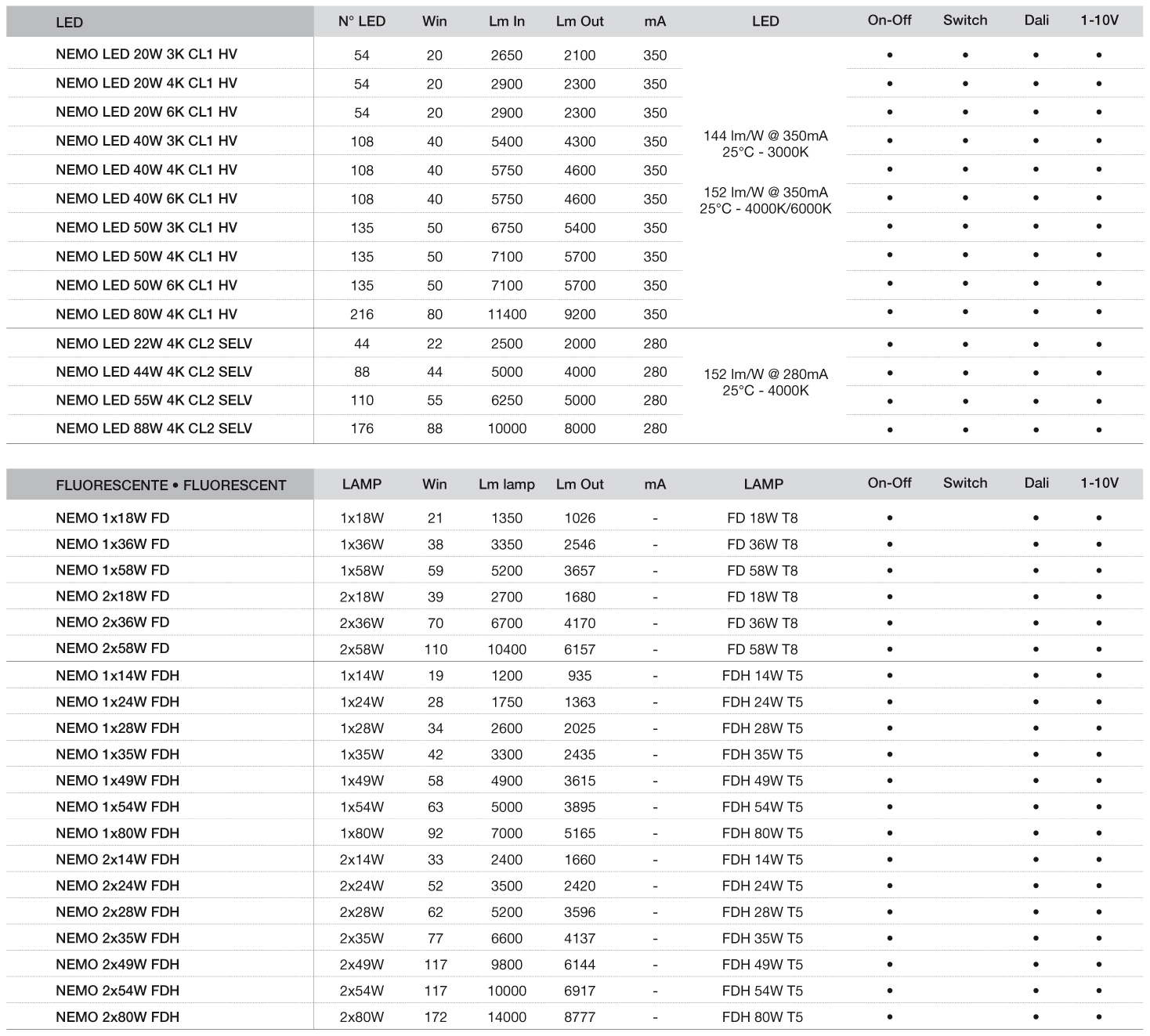

Light source 27/22 led modules. Efficiency 152lm/W @ 350mA Tj=25°C 4000K. Net luminous flux 2000÷9200 lm with efficiency up to 115 lm/W. Expected life 50.000h L70. Colour Rendering Index Ra > 80
SUPPLY UNIT
Settable driving current up to 350÷500mA by DIP-SWITCH, power factor > 0.95 220÷240V/50-60Hz, lifetime 50.000h @ Tc life.
Upon request available 1-10V dimmable solution, with DALI system or with emergency. Quick-connection plug to the power supply 2P+T (on-off version).
LAMPS
Available solutions for T8 fluorescent lamps, power: 1/2x18W, 1/2x36W, 1/2x58W and T5 fluorescent lamps, power: 1/2×14, 1/2×24, 1/2×28, 1/2×35, 1/2×49, 1/2×54 and 1/2×80.
SUPPLY UNIT
Electronic ballast for fluorescent lamps with Energy Efficiency Index (EEI) A2/A3, power factor > 0.95 220÷240V/50-60Hz, lifetime 50.000h @ Tc life. Upon request emergency version. PG 13.5 grey polyamide cable gland (lockable cable 9÷11mm). Internal terminal connection block 3×2.5mmq.
